. "JAWS" PUSH-PULL CLOSURE vittorio.scialla@strumentiperleaziende.com

The "Jaws" closure can be manufactured as an all-plastics spare part or can be integrated in another plastic body, at zero manufacture and assembly costs.

The "Jaws" closure simulator allows easy geometrical dimensioning.

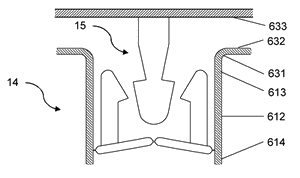

Basic "Jaws" closure.	Closure with lock function A lock can be added to the closure, by means of a rod 16, which, by being inserted on the back of one of the two hooks 605, prevents the closure from switching back to its open position, and the male element 15 from disengaging from hooks 604-605.

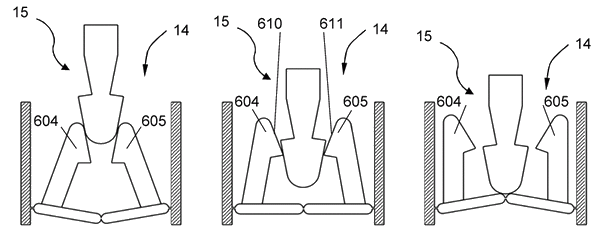

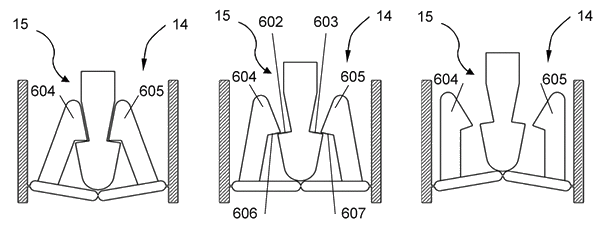

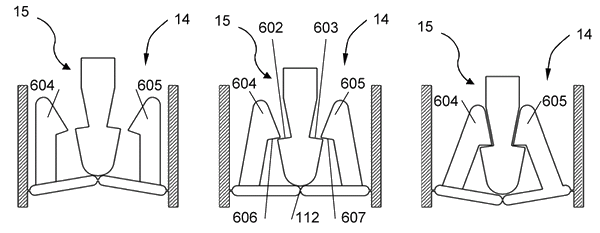

Closing cycle Opening cycle Re-opening of a device which accidentally got closed

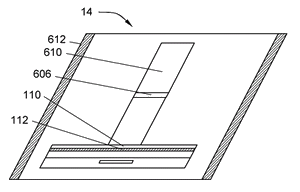

The "Jaws" closure can be designed in obliqual form	The "Jaws" closure can be integrated in other plastics bodies, at zero manufacture and assembly costs
